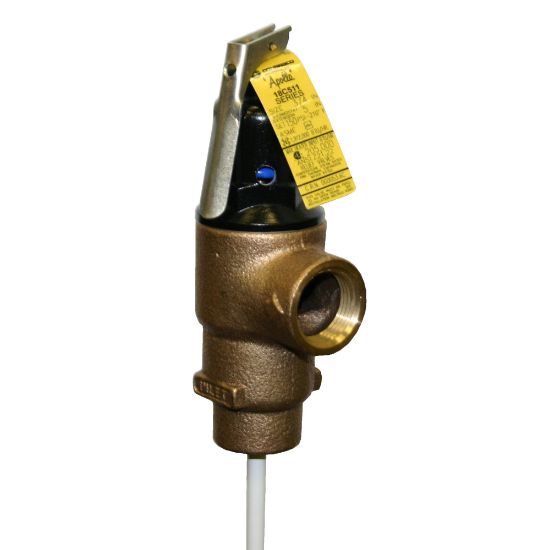

Picture of 18C-522-8150 1" T&P VALVE 150# FIP X FIP

18C-522-8150 1" T&P VALVE 150# FIP X FIP

Conbraco 18C5228150 18C-500 Series 1 in. FNPT Bronze Temperature and Pressure Relief Valve, 150psig
Manufacturer: Conbraco
$0.00
Temperature and Pressure Relief Valve, 18C-500 Series, Model: TPC-1, 5.6 in. Height, Bronze, End Connection 1: FNPT, Pressure - Maximum: 150psig, End Connection 2: FNPT, Fitting Size 2: 1 in., Specifications - ASTM: ASTM B-584, ASTM B-16, Silicone Valve Seat, Valve Size: 1 in., Dimension: 8 in. Element Length, Silicone Valve Disc, Maximum Temperature: 210F, 750000 btu/hr (CSA), 3625000 btu/hr (ASME) Capacity, Recommended Valve Application: Water, Specifications - ANSI: ANSI Z21.22
Products specifications
products.specs.attributename products.specs.attributevalue
End Connection FNPT
End Connection 1 MNPT
End Connection 2 FNPT
Fitting Size 1 1 in.
Fitting Size 2 1 in.
Fitting Sizes 1 in. x 1 in.
Height 5-3/5 in.
Length 11-2/3 in.
Material Bronze
Maximum Temperature 210
Pressure - Maximum 150 psi
Pressure Class 125#
Recommended Valve Application Water
Specifications - ANSI ANSI Z21.22
Specifications - ASTM ASTM B-584;ASTM B-16
Style Name 18C-500 Series
Valve Disc Material Silicone
Valve Seat Material Silicone
Valve Size 1 in.
Product Type Relief Valves
