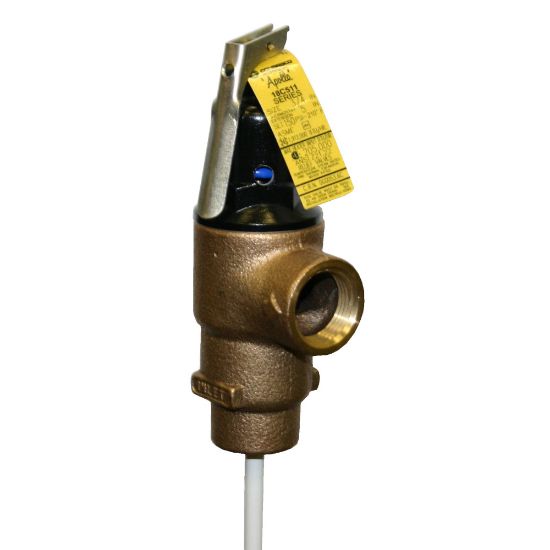

Picture of 18C-542-4150 1 1/2" T&P VALVE 150# FIP X

18C-542-4150 1 1/2" T&P VALVE 150# FIP X

Apollo TPC Bronze Temperature and Pressure Relief Valve, 1-1/2 in., MNPT x FNPT, 150#
Manufacturer: Conbraco
$0.00
Temperature and Pressure Relief Valve, 18C-500 Series, Model: TPC, 11.68 in. Length, Bronze, End Connection 1: MNPT, End Connection 2: FNPT, Fitting Size 2: 1-1/2 in., 210F Maximum - Temperature, 150# Pressure Class, Water Recommended Valve Application, Specifications - ANSI: ANSI Z21.22, Specifications - ASTM: ASTM B-584, B-16, Silicone Valve Disc, Silicone Valve Seat, Valve Size: 1-1/2 in., 1200000 btu/hr (CSA), 6050000 btu/hr (ASME) Capacity, Other Physical Dimensions: 4.13 in. Element Length
Products specifications
products.specs.attributename products.specs.attributevalue
End Connection MNPT
End Connection 1 MNPT
End Connection 2 FNPT
Fitting Size 1 1-1/2 in.
Fitting Size 2 1-1/2 in.
Fitting Sizes 1-1/2 in. x 1-1/2 in.
Length 11-2/3 in.
Material Bronze
Maximum Temperature 210F
Pressure Class 150#
Recommended Valve Application Water
Size 1-1/2 in.
Specifications - ANSI ANSI Z21.22
Specifications - ASTM ASTM B-584;ASTM B-16
Valve Disc Material Silicone
Valve Seat Material Silicone
Valve Size 1-1/2 in.
Product Type Relief Valves
