4 CI 125# FLG PERF .062 Y STRN

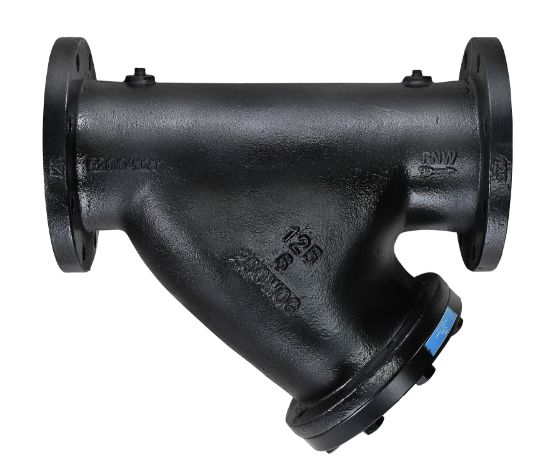

FNW FNW558BP Figure 558B 4 in. Flanged x Flanged Cast Iron/Stainless Steel 125# Wye Strainer
Manufacturer: FNW
$0.00
Products specifications
products.specs.attributename products.specs.attributevalue
End Connection Flanged x Flanged
End Connection 1 Flanged
End Connection 2 Flanged
Fitting Size 1 4 in.
Fitting Size 2 4 in.
Fitting Sizes 4 in. x 4 in.
Length 14-22/25 in.
Material Type 304
Maximum Temperature 450
Perforation Size 1/16 in.
Pressure - High 125 psi
Pressure - Maximum 200 psi
Pressure Class 125#
Recommended Valve Application Gas;Oil;Water
Specifications - ANSI ANSI B16.1
Specifications - API API 598
Specifications - ASTM ASTM A126-B;ASTM A307-A;ASTM A197-B
Specifications - MSS MSS SP-25
Specifications - UL Listed No
Style Name Figure 558B
Weight 66.00 lb
Product Type Y Strainers
Strainer Type Wye
