1/2 SS TFM 150# FLG 2PC FP BV

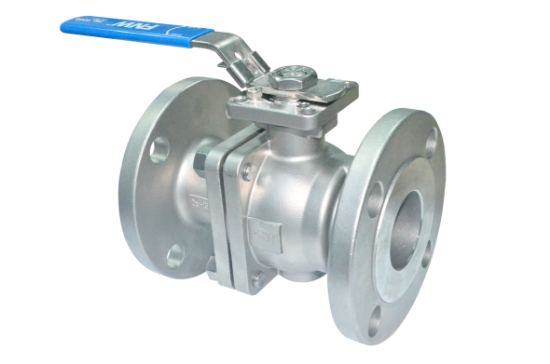

FNW FNW600BD Figure 600B 1/2 in. Flanged x Flanged Stainless Steel 150# Two-Piece Full Port Ball Valve
Manufacturer: FNW
$0.00
Products specifications
products.specs.attributename products.specs.attributevalue
End Connection Flanged x Flanged
End Connection 1 Flanged
End Connection 2 Flanged
Length 4-1/4 in.
Material Type 316
Pressure - High 150 psi
Pressure Class 150#
Specifications - ANSI ANSI B16.5;ANSI Z1157-2014e1
Specifications - API API 598
Specifications - ASME ASME B16.34;ASME B16.5
Specifications - FM Approved No
Specifications - IAPMO Listed Yes
Specifications - ISO ISO 5211
Specifications - NSF Certified No
Specifications - UL Listed No
Style Name Figure 600B
Valve Body Style Two-Piece
Valve Operator Lever Handle
Valve Port Opening Full Port
Valve Seat Material PTFE
Valve Size 1/2 in.
Valve Stem Blowout-proof
Valve Type Ball Valve
Product Type Ball Valves
Valve Body Material Stainless Steel
Clean & Bagged No
