ALBD6406P-1 SINK COM 3.50 WST T304 NH

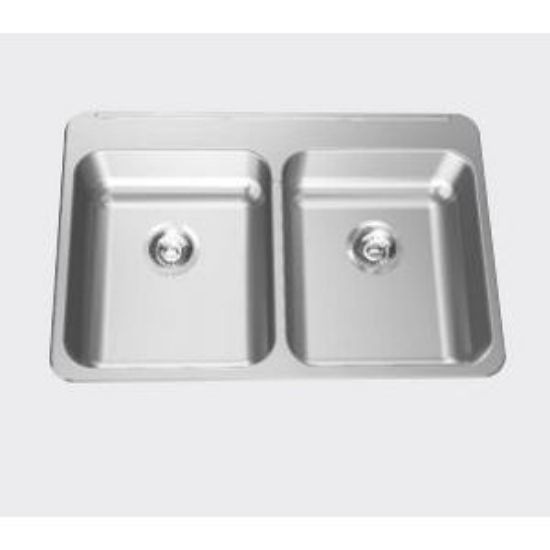

Franke ALBD6406P-1 32-1/4 in. x 20-1/2 in. Two Bowl Top Mount/Drop-in Stainless Steel Bathroom Sink, Satin
Manufacturer: Franke
$0.00
Double compartment self rimming topmount sink with faucet ledge. 18 gauge (1.2 mm), type 304 (CNS 18/10) stainless steel. Exposed surfaces are #4 satin finished. Undercoated to reduce condensation and resonance. Includes waste fittings, factory applied rim seal, cutout template, and factory installed EZ Torque fasteners. Certified to ASME A112.19.3-2008 / CSA B45.4-08. Wheelchair accessible: meets ADA (Americans with disabilities act guidelines) and ANSI A117.1 (Accessible and usable buildings and facilities). Check local codes to ensure compliance. Centre back waste location. Includes 3 1/2" (89 mm) crumb cup strainer with 1-1/2 in. (DN38) tailpiece. Sink has Spillway® partition. Model Options: ALBD6406P-1-1, 1 faucet hole, 1-1/2 in. diameter. ALBD6406P-1-3, 3 faucet holes, 1-1/2 in. diameter, 4" centres, 8 in. centreset. ALBD6406P-1, Custom (non-returnable). 20 1/2 x 31-1/4 in. Overall. 16 x 14 x 6" Bowl. (FB x LR x D). 521 x 794 mm Overall. 406 x 356 x 152 mm Bowl. (FB x LR x D).
Products specifications
products.specs.attributename products.specs.attributevalue
ADA Compliant Yes
Colour/Finish Category Stainless Steel
Colour/Finish Name Satin
Drain Opening 3-1/2 in.
Installation Type Top Mount;Drop-in
Shape Rectangular
Sink Bowl Size, Right 14 in. x 16 in. x 6 in.
Sink Bowl Size, Single Or Left 14 in. x 16 in. x 6 in.
Sink Size, Overall 32-1/4 in. x 20-1/2 in.
Specifications - ANSI ANSI A117.1
Specifications - ASME ASME A112.19.3-2008
Specifications - CSA Certified CSA B45.4 2008
Trim Only Yes
Application Commercial
Product Type Bathroom Sinks
Number of Bowls 2
Drain Location Rear Center
Sink Installation Type Top Mount/Drop-in
