ALBS2706P-1-1 SINK COMM 3.50 WASTE

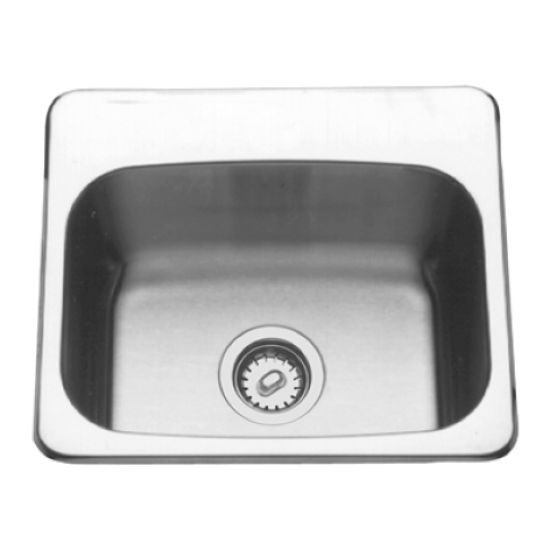

Franke ALBS2706P-1-1 19-1/8 in. x 17 in. Top Mount Single Bowl Stainless Steel Kitchen Sink, Satin
Manufacturer: Franke
$0.00
Wheelchair accessible, single compartment, self rimming topmount sink with faucet ledge. 18 gauge (1.2 mm), type 304 (CNS 18/10) stainless steel. Exposed surfaces are #4 satin finished. Undercoated to reduce condensation and resonance. Includes waste fitting, factory applied rim seal, cutout template, and factory installed EZ Torque fasteners. Certified to ASME A112.19.3-2008 / CSA B45.4-08. Meets ADA (Americans with disabilities act guidelines) and ANSI A117.1 (Accessible and usable buildings and facilities). Check local codes to ensure compliance. Centre waste location. Includes 3 1/2" (89 mm) crumb cup strainer with 1-1/2 in. (DN38) tailpiece. 1 faucet hole, 1-1/2 in. diameter. 17 x 19 1/8 in. Overall. 12 x 17 x 6" Bowl. (FB x LR x D). 432 x 486 mm Overall. 305 x 432 x 152 mm Bowl. (FB x LR x D).
Products specifications
products.specs.attributename products.specs.attributevalue
ADA Compliant Yes
Colour/Finish Category Neutrals
Colour/Finish Name Satin
Drain Opening 3-1/2 in.
Gauge (metal) 18 ga
Material Type 304
Number of Holes 1 Hole
Shape Rectangular
Sink Bowl Size, Single Or Left 17 in. x 12 in. x 6 in.
Sink Size, Overall 19-1/8 in. x 17 in.
Specifications - ASME ASME A112.19.3-2008
Specifications - CSA Certified CSA B45.4-08
Application Commercial
Product Type Kitchen Sinks
Number of Bowls 1
Drain Location Center
Sink Installation Type Top Mount
