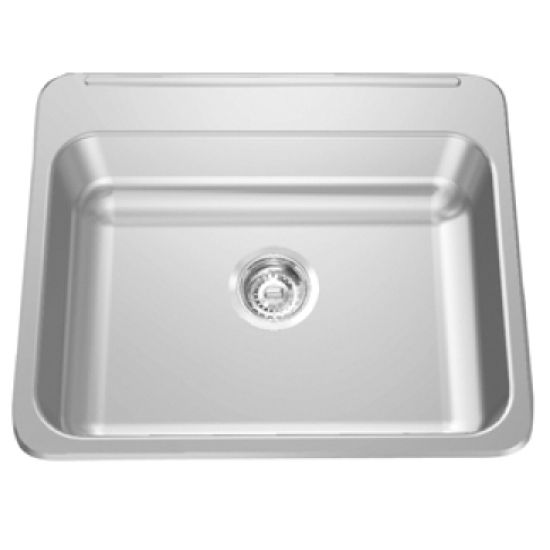

Picture of ALBS4006P-1 SINK COMM 3.50" WASTE NH

ALBS4006P-1 SINK COMM 3.50" WASTE NH

ALBS4006P1 22-1/8 in. x 18-13/16 in. Top Mount Single Bowl Stainless Steel Kitchen Sink, Satin
Manufacturer: Franke
$0.00
Wheelchair accessible, single compartment, self rimming topmount sink with faucet ledge. 18 gauge (1.2 mm), type 304 (CNS 18/10) stainless steel. Exposed surfaces are #4 satin finished. Undercoated to reduce condensation and resonance. Includes waste fitting, factory applied rim seal, cutout template, and factory installed EZ Torque fasteners. Certified to ASME A112.19.3-2008 / CSA B45.4-08. Meets ADA (Americans with disabilities act guidelines) and ANSI A117.1 (Accessible and usable buildings and facilities). Check local codes to ensure compliance. Centre back waste location. Includes 3 1/2" (89 mm) crumb cup strainer with 1-1/2 in. (DN38) tailpiece. Model Options: ALBS4006P-1-1, 1 faucet hole, 1-1/2 in. diameter. ALBS4006P-1-3, 3 faucet holes, 1-1/2 in. diameter, 4" centres, 8 in. centreset. ALBS4006P-1, Custom (non-returnable). 18 13/16 x 22 1/8 in. Overall. 14 x 20 x 6" Bowl. (FB x LR x D). 478 x 562 mm Overall. 356 x 508 x 152 mm Bowl. (FB x LR x D).
Products specifications
products.specs.attributename products.specs.attributevalue
ADA Compliant Yes
Colour/Finish Category Neutrals
Colour/Finish Name Satin
Drain Opening 3-1/2 in.
Gauge (metal) 18 ga
Material Type 304
Shape Rectangular
Sink Bowl Size, Single Or Left 20 in. x 14 in. x 6 in.
Sink Size, Overall 22-1/8 in. x 18-13/16 in.
Specifications - ASME ASME A112.19.3-2008
Specifications - CSA Certified CSA B45.4 2008
Application Commercial
Product Type Kitchen Sinks
Number of Bowls 1
Drain Location Rear Center
Sink Installation Type Top Mount
