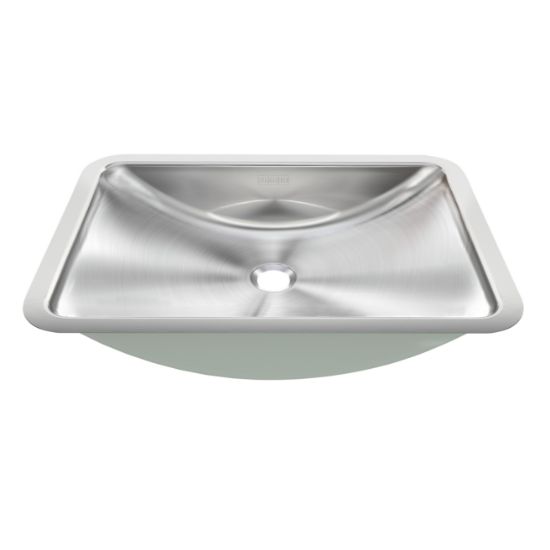

WB1420U-5 FRANKE UNDERMOUNT VANITY BASIN

Franke WB1420U-5 14 in. x 4-1/2 in. Undermount Single Bowl Stainless Steel Vanity Basin with Ledge, Satin
Manufacturer: Franke
$0.00
Single compartment undermount vanity basin. 18 gauge (1.2 mm), type 304 (CNS 18/10) stainless steel. Exposed surfaces are #4 satin finished. Undercoated to reduce condensation and resonance. Includes cutout template.  Certified to ASME A112.19.3-2008 / CSA B45.4-08. Centre back waste location, accepts 1-1/4 in. (32 mm) waste assembly (not included). 14 x 20" Overall. 12 x 18 x 4 1/2" Bowl. (FB x LR x D). 356 x 508 mm Overall. 305 x 457 x 114 mm Bowl. (FB x LR x D).
Products specifications
products.specs.attributename products.specs.attributevalue
Colour/Finish Category Stainless Steel
Colour/Finish Name Satin
Gauge (metal) 18 ga
Installation Type Undermount
Shape Oval
Sink Size, Overall 14 in. x 4-1/2 in.
Specifications - ANSI ANSI A117.1
Specifications - CSA Certified CSA B45.4 2008
Application Commercial
Product Type Bathroom Vanities
Number of Bowls 1
Sink Installation Type Undermount
Drain Location Center Rear
ADA Compliant Yes
Material Type 304
