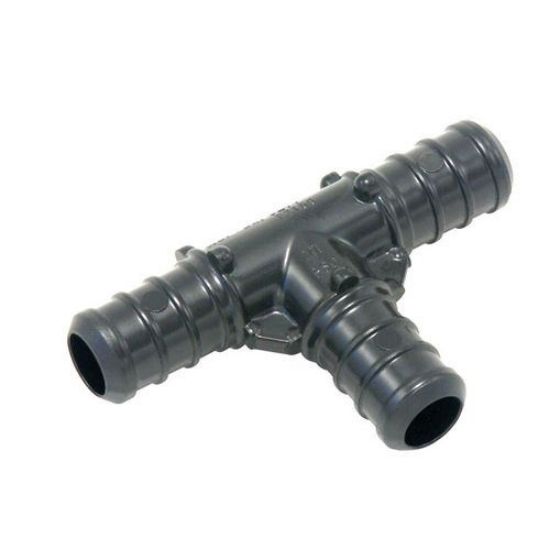

3/4 F2159 EP PEX TEE BLK

3/4 in. x 3/4 in. x 3/4 in. PEX Tee PVC
Manufacturer: Jones Stephens
$0.00
This AccuCrimp straight tee is made of polyvinyl chloride and has a 3/4 inch PEX connection. The tee is lead law compliant and meets the ASTM F-2159, ASTM F-876, F-877 and CSA B137.5 standards.
Products specifications
products.specs.attributename products.specs.attributevalue
End Connection PEX x PEX x PEX
End Connection 1 PEX
End Connection 2 PEX
End Connection 3 PEX
Fitting Size 1 3/4 in.
Fitting Size 2 3/4 in.
Fitting Size 3 3/4 in.
Fitting Sizes 3/4 in. x 3/4 in. x 3/4 in.
Lead Law Compliant Yes
Material Polyalloy
Material Type PVC
Specifications - CSA Certified CSA B137.5
Product Type Plastic Tees
Specifications - GSA Approved No
Weight 0.03 lb
Specifications - CARB/OTC/LEED Compliant No
Length 2-13/25 in.
Clean & Bagged No
Specifications - NSF NSF 14-2016a;NSF 61-2022;NSF 372-2022
Maximum Temperature 210
Application Water
Style Name PEX-B
Specifications - ANSI ANSI 14-2016a;ANSI 61-2022;ANSI 372-2022
Colour/Finish Name Black
Pressure - Maximum 150 psi
Width 1-73/100 in.
Specifications - IAPMO Listed Yes
Height 23/25 in.
Specifications - UL Listed No
Specifications - ASTM ASTM F877-2020
Size 3/4 in. x 3/4 in. x 3/4 in.
Temperature Range Up to 180 Deg F
Specifications - FM Approved No
Specifications - NSF Certified Yes
Colour/Finish Category Blacks
