005H 8 COUPLING E GASK PNT

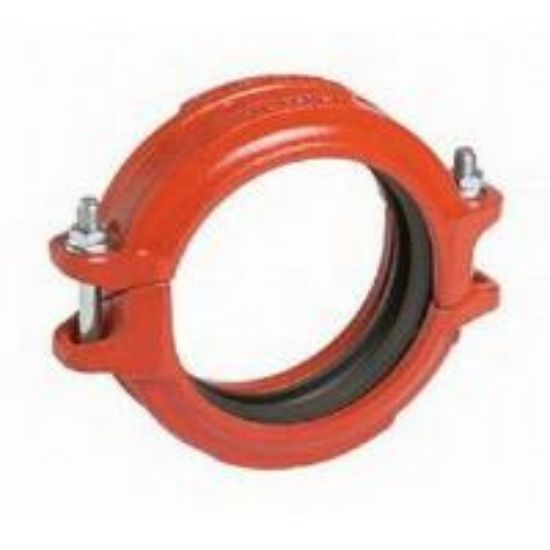

Victaulic L080005PE0 FireLock Style 005 8 in. Grooved Ductile Iron Rigid Coupling with Grade E Gasket
Manufacturer: Victaulic
$0.00
FireLock Rigid Coupling with Grade E Gasket, Model: 005, 13.13 in. Length, 2.63 in. Width, Ductile Iron, Coating: Orange Enamel, End Connection 1: Grooved, End Connection 2: Grooved, Fitting Size 1: 8 in., Fitting Size 2: 8 in., Pressure - Maximum: 300 psi, Specifications - ASTM: ASTM A-536 Grade 65-45-12, ASTM A-449, ASTM A-183, Other Physical Dimensions: (2) 5/8 x 4-1/4 in. Bolt/Nut, 0.19 in. Allowable Pipe End Separation, 10-1/2 in. Body Outside Diameter, Diameter - Outside 1: 8-5/8 in., 17525 lbs. Maximum End Load, Global Origin
Products specifications
products.specs.attributename products.specs.attributevalue
Coating Orange Enamel
Colour/Finish Category Oranges
Colour/Finish Name Orange
Diameter - Outside 8-5/8 in.
End Connection Grooved
End Connection 1 Grooved
End Connection 2 Grooved
Fitting Size 1 8 in.
Fitting Size 2 8 in.
Fitting Sizes 8 in. x 8 in.
Material Ductile Iron
Material Type EPDM
Pressure - Maximum 300 psi
Specifications - ANSI ANSI 372;ANSI 61
Specifications - ASTM ASTM A-395 Grade 65-45-15;ASTM A-536 Grade 65-45-12
Specifications - FM Approved Yes
Specifications - ISO ISO 9001
Specifications - NSF NSF 61;NSF 372
Specifications - NSF Certified Yes
Specifications - UL Listed Yes
Style Name FireLock Style 005
Temperature Range -40 Deg F (-40 Deg C)
Thickness 2.63 in.
Weight 11.30 lb
Width 2-46/73 in.
Application Fire Protection
Origin Domestic
Product Type Ductile Iron Couplings
