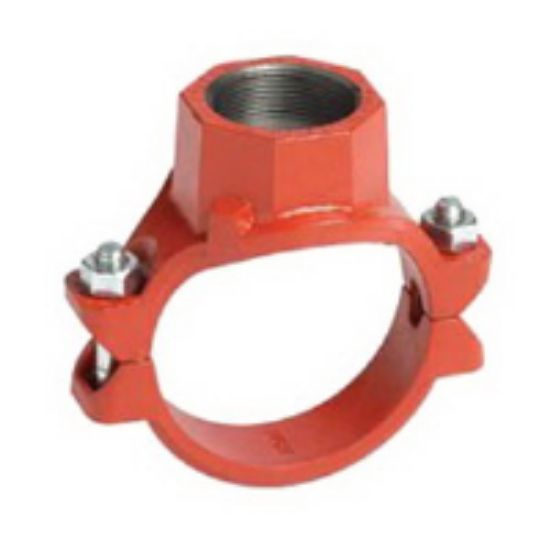

Picture of 920 8X2 FNPT MEC-T OLET E GASK PNT

920 8X2 FNPT MEC-T OLET E GASK PNT

Victaulic CF30920PE0 FireLock Style 920 8 in. x 8 in. x 2 in. FNPT Ductile Iron Reducing Mechanical-T Outlet with Grade E Gasket
Manufacturer: Victaulic
$0.00
Mechanical-T Bolted Branch Outlet with Grade E Gasket, Model: 920, 12.42 in. Length, 4-1/2 in. Width, Ductile Iron, Coating: Orange Enamel, End Connection 1: FNPT, End Connection 2: FNPT, FNPT End Connection 3, Fitting Size 1: 8 in., Fitting Size 2: 8 in., 2 in. Fitting Size 3, Specifications - ASTM: ASTM A-536 Grade 65-45-12, ASTM A-449, ASTM A-183, Pressure - Maximum: 500 psi, Other Physical Dimensions: 2-3/4 in. Hole Diameter, 5.44 in. Centre of Run to Engaged Pipe End, 6.19 in. Centre of Run to End of Fitting, Global Origin
Products specifications
products.specs.attributename products.specs.attributevalue
Coating Orange Enamel
Colour/Finish Category Oranges
Colour/Finish Name Orange
End Connection FNPT
End Connection 1 FNPT
End Connection 2 FNPT
End Connection 3 FNPT
Fitting Size 1 8 in.
Fitting Size 2 8 in.
Fitting Size 3 2 in.
Fitting Sizes 8 in. x 8 in. x 2 in.
Length 4-1/2 in.
Material Ductile Iron
Maximum Temperature 230
Minimum Temperature -30
Pressure - Maximum 500 psi
Specifications - ANSI ANSI 61
Specifications - ASTM ASTM A-183;ASTM A-449;ASTM A-536 Grade 65-45-12
Specifications - NSF NSF 61
Specifications - NSF Certified Yes
Specifications - UL Listed Yes
Style Name FireLock Style 920
Temperature Range -30 to 230 Deg F
Weight 11.60 lb
Width 4-1/2 in.
Application Polybutylene Pipe;Polyethylene Pipe;Schedule 10 Carbon Steel Pipe;Schedule 40 Carbon Steel Pipe
Product Type Sprinkler Tees
