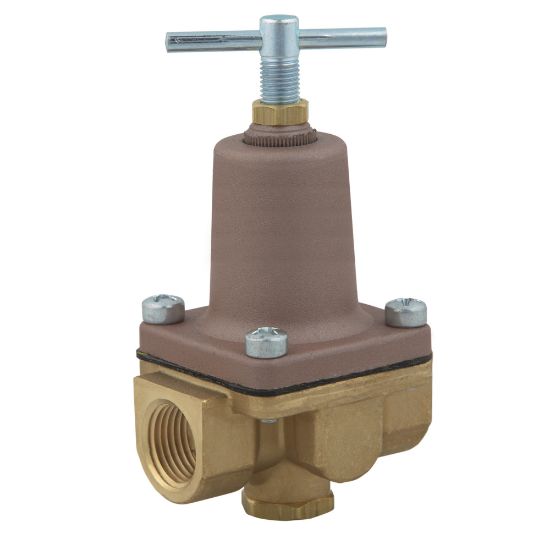

Picture of LF26A LLC 1/4" 1-25 2W WTR PRES REGUL

LF26A LLC 1/4" 1-25 2W WTR PRES REGUL

Watts 0009810 LF26A Series Lead Free 1/4 in. 1 to 25 psi Brass Two-Way Small Water Pressure Regulator
Manufacturer: Watts
$0.00
This 1/4 in. lead free small water pressure regulator is used in small general purpose applications to regulate water pressure in piping systems using water and No. 2 fuel oil. It has an oversized orifice and is ideally used on beverage dispensing and paint spraying equipment, ice cube machines, humidifiers, drinking fountains, and other small process applications. It consists of a lead free brass body with an adjusting tee handle, NPT threaded female connections, two-way low water pressure gauge port, aluminum spring cage, Buna-N stainless steel disc, and a reinforced Buna-N diaphragm. The reduced water pressure range is 1 to 25 psi (0.1 to 1.7 bar) and is factory set at 10 psi (0.7 bar).
Products specifications
products.specs.attributename products.specs.attributevalue
End Connection FNPT x FNPT
End Connection 1 FNPT
End Connection 2 FNPT
Height 4-3/8 in.
Lead Law Compliant Yes
Length 2-1/8 in.
Maximum Temperature 140
Pressure - Maximum 25 psi
Recommended Valve Application Water
Size 1/4 in.
Specifications - ANSI ANSI 61 Annex G
Specifications - NSF NSF 372;NSF 31;NSF 61 Annex 9
Specifications - NSF Certified Yes
Valve Disc Material Buna-N
Valve Operator Tee Handle
Valve Size 1/4 in.
Product Type Hydronic Pressure Regulating Valves
Fitting Size 1 1/4 in.
Fitting Sizes 1/4 in.
Valve Seat Material Aluminum
Valve Type Two-Way
Valve Body Style Two-Way
Valve Body Material Brass
Application Commercial;Residential
Minimum Temperature -18.0
Style Name LF26A Series
