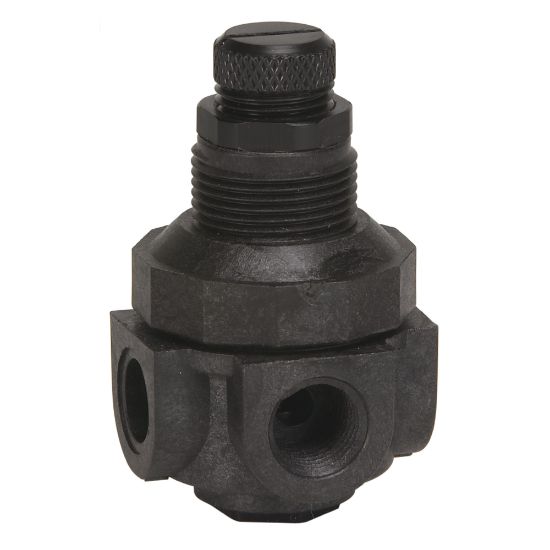

Picture of P60-M1-1/4" 0-25 PLAST WTR PRES REGUL

P60-M1-1/4" 0-25 PLAST WTR PRES REGUL

Watts 0354554 P60 Series Miniature 1/4 in. FNPT 0 to 25 psi Miniature Plastic Water Pressure Regulator with Acetal Plug
Manufacturer: Watts
$0.00
This 1/4 in. miniature water pressure regulator is compact and lightweight with a high flow capacity. It is used in general purpose and OEM applications where a small economical package is required. It is also suitable for deionized water applications. It has a balanced piston design for applications to regulate pressure in systems that require a constant downstream and accurate flow performance. It consists of a thermoplastic body construction, NPT female connections in a straight through gauge port, a rubber disc, diaphragm, and seals of FDA grade elastomers, stainless steel internal metal components. The reduced pressure range is 0 to 25 psi (0 to 1.76 bar) and the temperature range is 33 to 150 degrees F (0.5 to 66 degrees C).
Products specifications
products.specs.attributename products.specs.attributevalue
End Connection Solder x FNPT
End Connection 1 Solder
End Connection 2 FNPT
Height 2-7/8 in.
Lead Law Compliant Yes
Length 1-4/7 in.
Material Type Miniature Plastic
Maximum Temperature 150
Pressure - Maximum 300 psi
Recommended Valve Application Water
Specifications - NSF NSF 61 Annex G
Specifications - NSF Certified Yes
Valve Disc Material Buna-N
Valve Seat Material Buna-N
Valve Size 1/4 in.
Product Type Hydronic Pressure Regulating Valves
Fitting Size 1 1/4 in.
Fitting Sizes 1/4 in.
Style Name P60 Series
Weight 0.13 lb
Width 1-7/8 in.
Origin United States
Minimum Temperature 33
Valve Type Standard
Valve Body Material Plastic
Valve Body Style Standard
Application Commercial
